 Welding Machines |
|
WELD ARC |
 |
|
ARC WELDING SYSTEM |
Welding Transformers
- Class ‘H’ Insulation
- Excellent Arc Characteristics
- Natural Air – Cooled
- Rugged & Reliable
- Stepless Current Regulation
|
 |
 |
|
WELDARC – ARC WELDING MACHINES |
| Weldcraft brings you the ultimate welding work-horse designed for handling the toughest production and maintenance welding jobs. These natural air-cooled welding transformers have Class ‘H’ insulation and stepless current regulation. They possess excellent arc characteristics, ensuring smooth and stable arc, better metal transfer, low spatter levels, excellent arc-striking (due to high OCV) and prevent electrodes from freezing due to their starting current surge. These features keep us a step above the rest. |
|
|
| |
| Specifications |
| TECHNICAL DATA |
WT
225
|
WT/CTT
300
|
WT/CTT
400 |
WT/CTT
500 |
WT/CTT
600 |
| Supply Voltage(V) |
220/440 |
380/440 |
380/440 |
380/440 |
380/440 |
| Phase |
1 |
1/3 |
1/3 |
1/3 |
3 |
| Frequency(Hz) |
50 |
50 |
50 |
50 |
50 |
| Primary Switch Fuse Raiting (A) |
60/40 |
60/50 |
80/60 |
100/80 |
100 |
| Duty Cycle |
50% |
60% |
60% |
60% |
60% |
| Rated Power (KVA) |
9 |
16 |
21 |
30 |
39 |
| Welding Current Range (A) |
50-225 |
60-300 |
70-400 |
80-500 |
80-625 |
| O.C.V.(V) |
65 |
80 |
82 |
85 |
85 |
| Max. Handwelding Current (A) |
225 |
300 |
400 |
500 |
600 |
| Cooling |
Air |
Air |
Air |
Air |
Air |
| Insulation Class |
H |
H |
H |
H |
H |
Approximate-Length (mm.)
Width (mm.)
Height (mm.) |
550
420
570
|
580/680
450
700 |
650/790
500
800
|
700/840
500
800
|
900
550
800
|
| Weight (kg.) |
75 |
115/135 |
150/180 |
190/225 |
300 |
|
Please note:
- Towing handle provided from 300 A models onwards for easy maneuverability.
- Made also to IS & IPSS standards.
|
Our Other Products
- Welding Rectifiers
- Tig Welding Machines
- Submerged Arc Welding Machines
- Plasma Cutting Machines
|
In view of continuous development, design and specifications are subject to change without notice. |
|
|
|
SAWMAX AUTOMATS |
|
|
ARC WELDING SYSTEM |
POWER SOURCE
- Hot start Facility for Good Ignition
- Step Controlled Power Sources
- Thyristor Contorlled Power Source are solid
- State with all necessary features and protections
- Current limiter for Machine Protection
- Suitable for MIG/MAG applications also
- Infinitely variable output parameters
|
 |
SAW TRACTOR
- Flexible application by Modular construction
- Versatile Welding head positioning
- Best Suited for Hard Facing Applications
- High productivity
- Digital Display of Voltage / Current / Travel
- Sturdy Wire Feeder Gearbox- Trouble Free
- Tractor Runs Directly on Workpiece or on Rails
- Easy Installation
- Rugged Mechanism for Travel Movement
- Precision Machined Cross Slides
|
 |

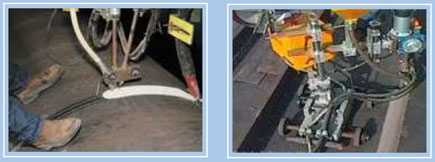

SAW BEAM
- Precise Travel Movement- Positive Drive
- Single Wire & Multi Wire Welding Systems
- Oscillation Facility as Option
|
 |
|
| |
|
WELDING HEAD |
| Specifications |
| TECHNICAL DATA |
SAWMAX 100 |
SAWMAX 300 |
SAWMAX 300 |
| Technology |
SAW-single wire |
SAW-single wire |
SAW-single wire |
| Type |
BEAM MOUNTED |
BOOM MOUNTED |
TRACTOR |
| Welding Current A |
1500 |
1500 |
1500 |
| Control Voltage V |
42 V |
42 V |
42 V |
| Wire diameter mm |
2-5 – 6.0 |
2-5 – 6.0 |
2-5 – 6.0 |
| Wire feed speed m/min |
0.5 – 8.0 |
0.5 – 4.0 |
0.5 – 4.0 |
| Travel speed m/min |
0.1 – 1.5 |
---------- |
0.1 – 1.5 |
| Cross/height adjustment mm |
250/250 |
140/140 |
140/140 |
| Y (travel) adjustment mm |
---------- |
140 |
---------- |
| Column swivel range degree |
270 |
270 |
360 |
| Welding head inclination (transverse) degree |
45 |
45 |
45 |
| Welding head inclination (parallel) degree |
30(Adj.) |
30(Adj.) |
30(Adj.) |
| Tube inside welding mm |
1500 |
1500 |
1500 |
| Wire reel capacity Kg |
25 |
25 |
25 |
| Flux hopper capacity Kg |
10 |
10 |
10 |
| Dimension LxBxH mm |
500x950x950 |
350x500x500 |
1100x600x950 |
| Weight Kg |
100 |
80 |
110 |
|
| |
SAW POWER SOURCE |
| Specifications |
| TECHNICAL DATA |
SMP 800CP |
SMP 1200CP |
SMP 600 |
SMP 1200 |
| Input Supply V/Ph/50Hz |
415/3 |
415/3 |
415/3 |
415/3 |
| Fuse (slow) A |
60 |
100 |
4 |
100 |
| Max. Power @ 100% KVA |
46 |
66 |
36 |
65 |
| OCV V |
24 – 52 |
30 – 54 |
16 – 50 |
18 – 60 |
| Welding current range A |
150 – 800 |
200 – 1200 |
60 – 600 |
100 – 1200 |
| Control |
Diode |
Diode |
Thyristor |
Thyristor |
| Current @ 60% A |
------- |
1200 |
----------- |
1200 |
| Current @ 100% A |
800 |
1000 |
600 |
1000 |
| Protection class |
IP 23 |
IP 23 |
IP 23 |
IP 23 |
| Insulation class |
F |
F |
F |
F |
| Type of cooling |
F |
F |
F |
F |
| Welding head inclination (parallel) degree |
30(Adj.) |
30(Adj.) |
30(Adj.) |
|
| Tube inside welding mm |
1500 |
1500 |
1500 |
|
| Wire reel capacity Kg |
25 |
25 |
25 |
|
| Flux hopper capacity Kg |
10 |
10 |
10 |
|
| Dimension LxBxH mm |
500x950x950 |
350x500x500 |
1100x600x950 |
|
| Weight Kg |
100 |
80 |
110 |
|
| Dimensions LxBxH mm |
1000 x 500 x 850 |
1100 x 680 x 900 |
900 x 500 x 800 |
1100 x 680 x 900 |
| |
350 |
500 |
250 |
400 |
| |
|
|
|
|
Optional Accessories: Flux Drying Oven, Flux Recovery System, Weld Timer Module, Twin Wire Attachment, Motorized Cross Slides, Spot Light Projector Etc.
We also provide welding systems like column & Boom, Rotators, Positioners to customers’ specific requirements. In view of continuous development, design and specifications are subject to change without notice. |
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
